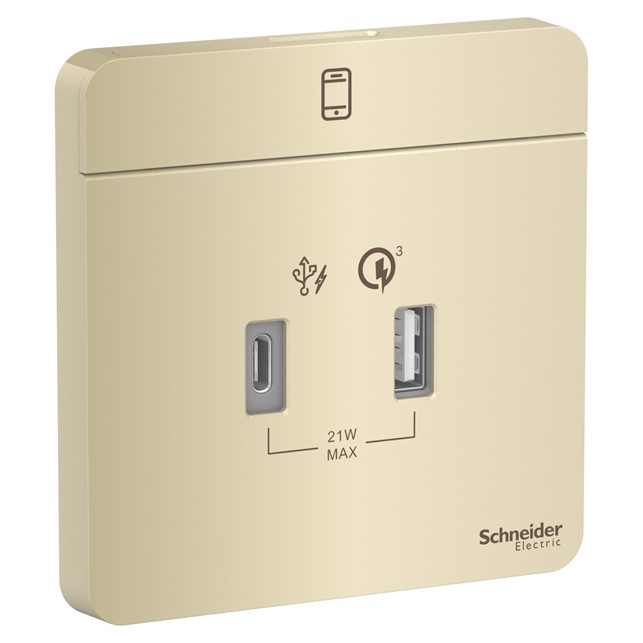

Outlet Data Schneider USB charger, AvatarOn type A + C, 2.1…3A, Wine Gold
Rp1.101.817
SKU:
E8332ACQUSB_WG
Kategori: Electrical, Saklar & Stop Kontak, Schneider, Schneider AvatarOn
Tag: AvatarOn, Saklar, Schneider
Deskripsi
Specification
Product or component type | USB charger |
---|---|
Device application | Charger |
Integrated connection type | USB type A 5 V, maximum load current: 2.1 A USB type C 5 V, maximum load current: 2.1 A |
device mounting | Flush |
---|---|
Device presentation | Complete product |
Colour tint | Wine gold |
Surface finish | Painted |
Surface treatment | Polished |
Ambient air temperature for storage | -5…60 °C |
Relative humidity | 0…95 % |
[Ue] rated operational voltage | 100/240 V 50/60 Hz |
Power consumption in W | 21 W |
maximum load current with 2 outputs used simultaneously | 3 A |
Material | PC (polycarbonate) |
Connections – terminals | Screw terminals |
Clamping connection capacity | 2.5 mm² for stranded cable(s) 2.5 mm² for solid cable(s) 1.5 mm² for stranded cable(s) 1.5 mm² for solid cable(s) |
Wire stripping length | 8 mm |
Product compatibility | HTC XiaoMi Apple Samsung HW Major smart phone and tablet |
Height | 86 mm |
Width | 86 mm |
Depth | 40.1 mm |
Embedding depth | 30.4 mm |
Product weight | 0.1292 kg |
standards | MS IEC 60950-1 IEC 60950-1 IEC 62368-1 IEC 61558-2-16 |
---|---|
Product certifications | IEC |
Electrical insulation class | Class II |
IP degree of protection | IP20 |
Environmental characteristic | Liquid soap Alcohol Petrol |
