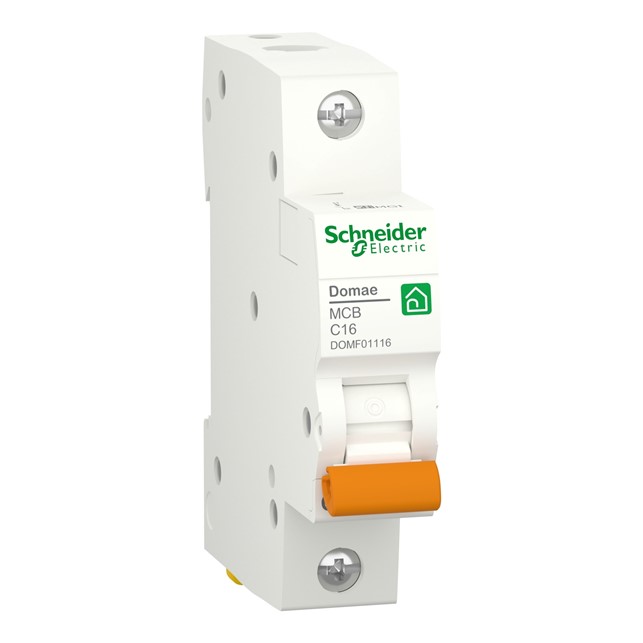

Schneider Miniature circuit breaker, Domae, 1P, 16 A, C Curve, 6000 A
Rp126.263
Deskripsi
Specifications
| Range | Domae |
|---|---|
| Product or component type | Miniature circuit-breaker |
| Device short name | Domae MCB |
| Device application | Protection |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 16 A |
| network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | Icn 6000 A |
| Quality labels | CE |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| Magnetic tripping limit | 5…10 x In |
| Control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | YES |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 71.5 mm |
| Product weight | 0.095 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections – terminals | Tunnel type terminals (top or bottom) – 1…25 mm² – rigid Tunnel type terminals (top or bottom) – 1…16 mm² – flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| Earth-leakage protection | Without |
| Standards | IEC 60898-1 |
|---|---|
| Product certifications | SNI |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| overvoltage category | III |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -40…85 °C |
